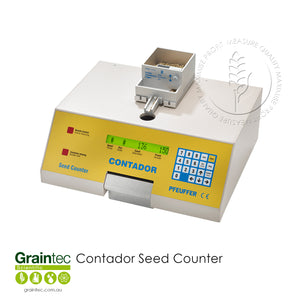

Contador Seed Counter

SKU: 1275

Description
Features
Technical
Video
Downloads
Enquire Now

Description

Counts and fills all seeds from 0.3mm to 15mm

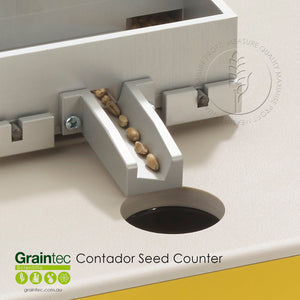

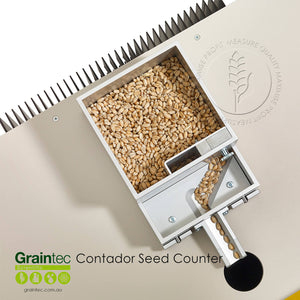

The feed container is held in place by an electromagnet and vibration induced during counting. The material to be counted reaches the outlet and falls into the receptacle through a photoelectric counter.

The Contador selects its counting speed automatically dependent on the size of the material to be counted. This guarantees optimum use of the counting capacity and reduces counting time to a minimum whilst maintaining counting accuracy. Shortly before counting is completed, the Contador reduces its counting speed so that no more seeds are counted than have been preset. Counting speed may also be manually adjusted. The instrument can recognise when the receptacle or the feed container is absent, stops counting and reports the fact on the display so that no operating faults occur. Particles which are significantly smaller in size are not counted. Thus, for example, canola seeds in a sample pass drop into the receptacle without being counted. By manually adjusting the seed size it is possible to control the counting of particles.

The display shows in automatic mode the preset quantity and the count so far. In manual mode it also shows the counting speed selected and the seed size. The keyboard is used to select various modes of operation, such as summation counting and differential counting.

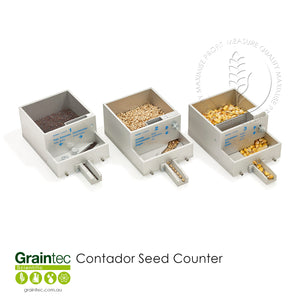

Feed Containers
#1 - canola seeds, small seeds
#2 - cereals, sunflower seeds, rye
#3 - corn, field beans, peas

Features

  • High counting speed
  • Precise count
  • Easy to use
  • Quiet Operation
  • Flexible

Technical

Voltage
115 / 230V, 50/60Hz (on demand)

Dimensions
430 x 235 x 380mm (L X W x H)

Weight
Approx. 16kg


p/no. 1410 0009 Contador "E" 230V
p/no. 1410 0010 Contador "E" 115V

Video
