Description

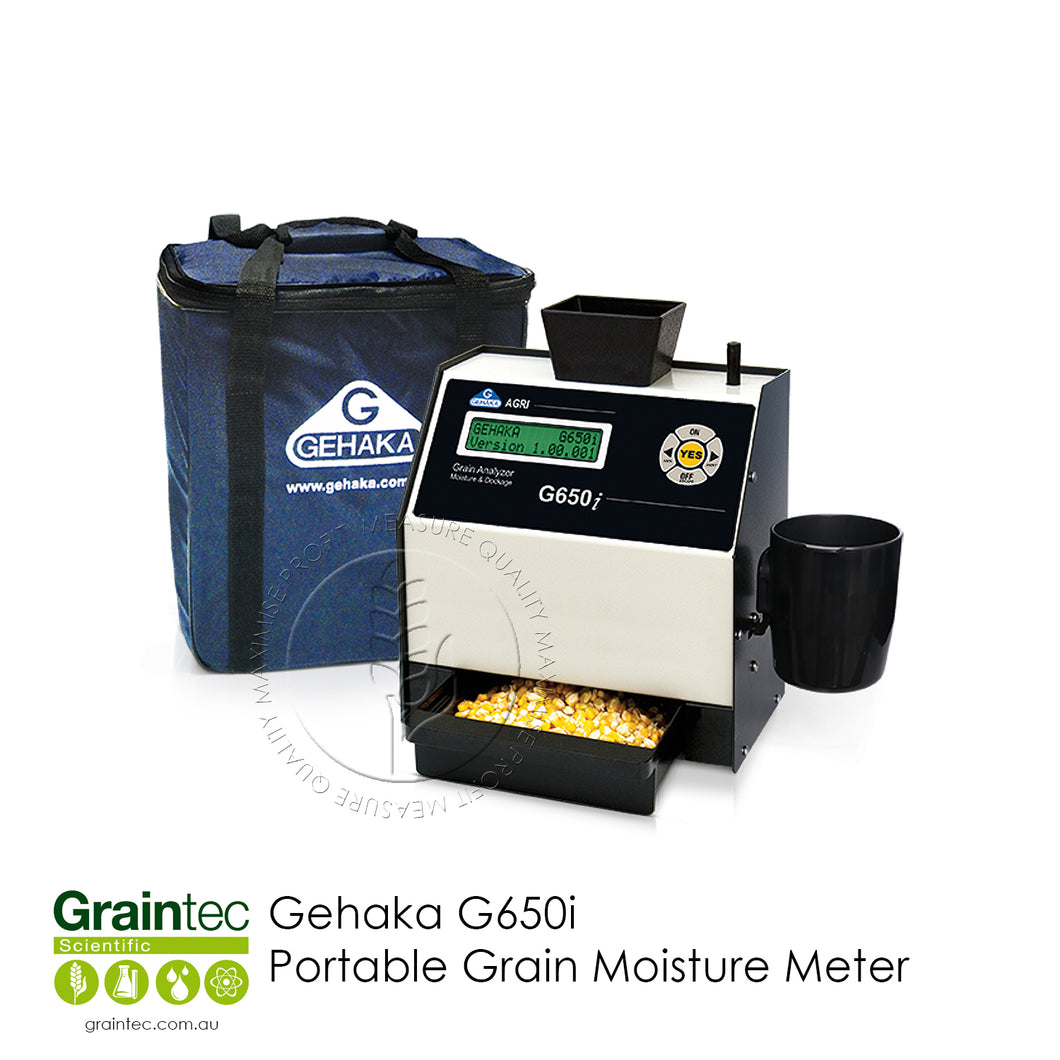

The G650i is the state-of-the art in compact grain moisture and foreign material tester. It consists of an electronic scale, two thermometers and a capacitance meter. All measurement management is carried out by a state-of-the-art internal microprocessor.
* Product price and shipping rates exclude GST.
Features
- Performs calculations required for grain classification, such as impurities, defects, test weight and moisture
- Measures moisture content of grain sample accurately, quickly (up to 15 seconds) and safely
- Allows the percentage calculation of impurities and damaged grains through its built-in digital scale, by simply accessing the “Dockage” function
- Allows determining the apparent density of the grain sample with a very simple operation through the “Test Weight” function
- All calibration curves available online: on www.moisturetester.com.br
Specifications
| Number of scales | 72 |
| Measurement range | According to the commodity calibration |
| Division | 0,1 % |
| Moisture reading accuracy | ± 0.25 % relative to the oven standard |
| Sample weight to measure the moisture | 80 g < weight < 180 g according to the product |
| Sample weight for impurity calculation | Up to the capacity of the weighing vat |
| Scale | 1,000 g x 0.1 g Combined Error of ± 0.2 g |
| Thermometer | 0º to 100 ºC (with ± 0.3 ºC accuracy) |
| Data interface | Bidirectional, Serial RS232C |
| Tester net weight | 3,90 Kg |
| Dimensions | 345 x 300 x 168 mm (W x H D) |
| Power supply | 9 Volt Alkaline Battery or 90 to 240 VAC automatic network adapter |
Included Accessories
- 9 Volt Alkaline Battery
- 90 to 240 Volts - 50/60 Hz automatic AC/DC power adapter
- Carrying case
- Instruction manual
- Dust cover
