Description

One Minute Water Activity and Moisture Content!

Speed changes everything
Normally, measuring water activity takes a significant amount of time. The sample must come to equilibrium with the air in the headspace above the sample before a reading can be taken. Depending on the sample, that can take 2-5 minutes—even longer for coated products, products high in fat, or volatile compounds. There hasn’t been a way around “equilibrium time” or “dwell time.” Until now.

Fast answers, no waiting - The new AQUALAB 3 breaks the speed barrier
Using SKALA-powered predictive AI, it delivers both water activity and moisture content readings on a single sample in one minute, even when measuring volatile compounds.

Features

  • Fast: water activity readings in 1 minute.
  • Easy to use: precise measurements, minimal training

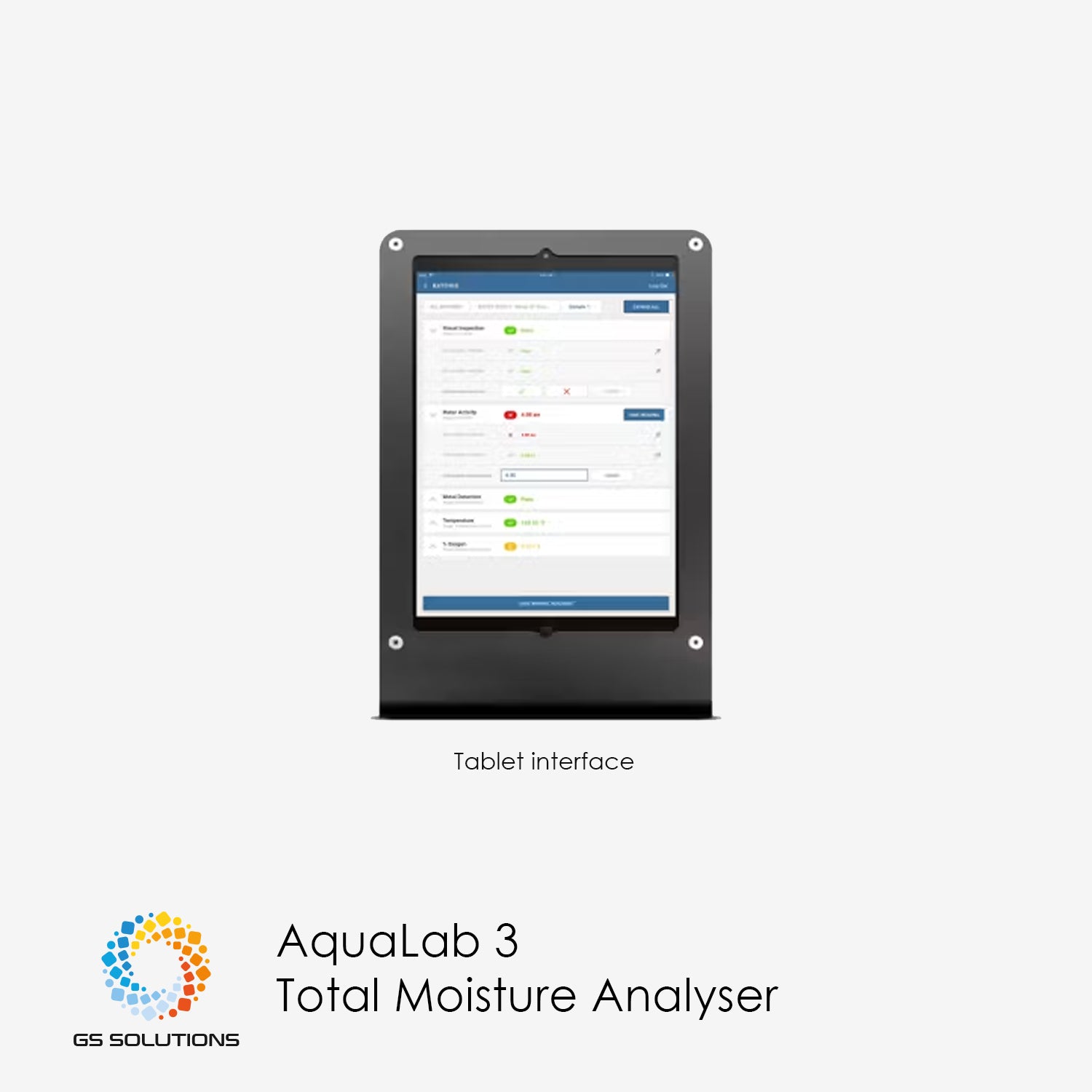

  • Expandable: connect and manage multiple AQUALAB 3 instruments with one iPad
  • Repeatable: certified standards for repeatability across users and locations
  • Multiple reading types: simultaneous moisture content readings
  • Optional block exchange program includes annual recalibration, extended warranty, and service plan

To request for a demo, email hello@graintec.com.au or click here.

Specifications

Measurement Specifications

Water activity
  • Sensor type: Chilled mirror dew point and capacitive hygrometer
  • Range: 0.030–1.000 aw
  • Resolution: 0.0001 aw
  • Accuracy: ±0.005 aw (dew point), ±0.015 aw (capacitance)
  • Repeatability: 0.002 aw (dew point), 0.010 aw (capacitance)
Moisture Content
  • Accuracy: 0.1%–0.5% to moisture content reference
  • Repeatability: 0.02%
Operating temperature
  • Controlled at constant: 25 °C
  • Resolution: 0.1 °C
  • Accuracy: ± 0.1 °C
Read time
  • Minimum: 60 s (One-Minute Water Activity Mode; subscription required)
  • Maximum: >200 s (estimated)

Physical Specifications

Case dimensions
  • Length: 23.4 cm (9.2 in)
  • Width: 23.4 cm (9.2 in)
  • Height: 12.1 cm (5.0 in)
Case material
  • Polycarbonate-ABS (PC-ABS)
Sample cup capacity
  • 7.5 mL (0.25 fl oz), partially full, recommended
  • 15 mL (0.51 fl oz), full
Weight
  • 5 kg (11 lb)
Operating temperature
  • Minimum: 15 °C
  • Maximum: 35 °C
Display
  • iPad
Operating environment
  • 0% - 90% noncondensing
Data communications
  • USB A to USB B
  • 9,600 baud
Power
  • 110–240 VAC
Reading duration
  • Minimum: 60 s (One-Minute Water Activity Mode; subscription required)
  • Maximum: >200 s (estimated)

Compliance
Manufactured under ISO 9001:2015
EM ISO/IEC 17050:2010 (CE Mark)
