TAGARNO digital microscopes give you unique and easy to use magnification equipment to use in a variety of quality control processes as well as R&D efforts or in your repair and rework in an endless range of segments.

The digital microscopy camera technology enables you to see any small object in ultra sharp magnification and to document your work with just a single click.

It also allows multiple viewers at the same time and thereby greatly improves collaboration.

Features

  • Perform firmware updates for ongoing improvements and adding features
  • Magnification levels 1.3x - 330x on a 24" monitor
  • 30 x optical zoom
  • 60fps equals ultra-high frame rates
  • FULL HD / 1080p image quality
  • Capture images directly to the microscope or computer
  • Auto & Manual focus
  • Field of view: Min. 1,6mm/0.063” / max 409,0mm/16.10”
  • Lens to object distance: Min. 34mm/1.34” / max 333mm/12.11”
  • Working height: Min: 100mm/3.94” Max: 335mm/13.2”
  • Working depth: 385mm/15.16”

Technical

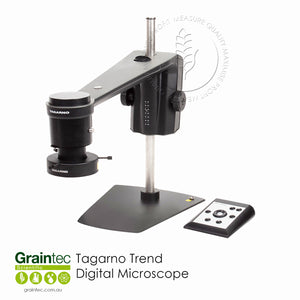

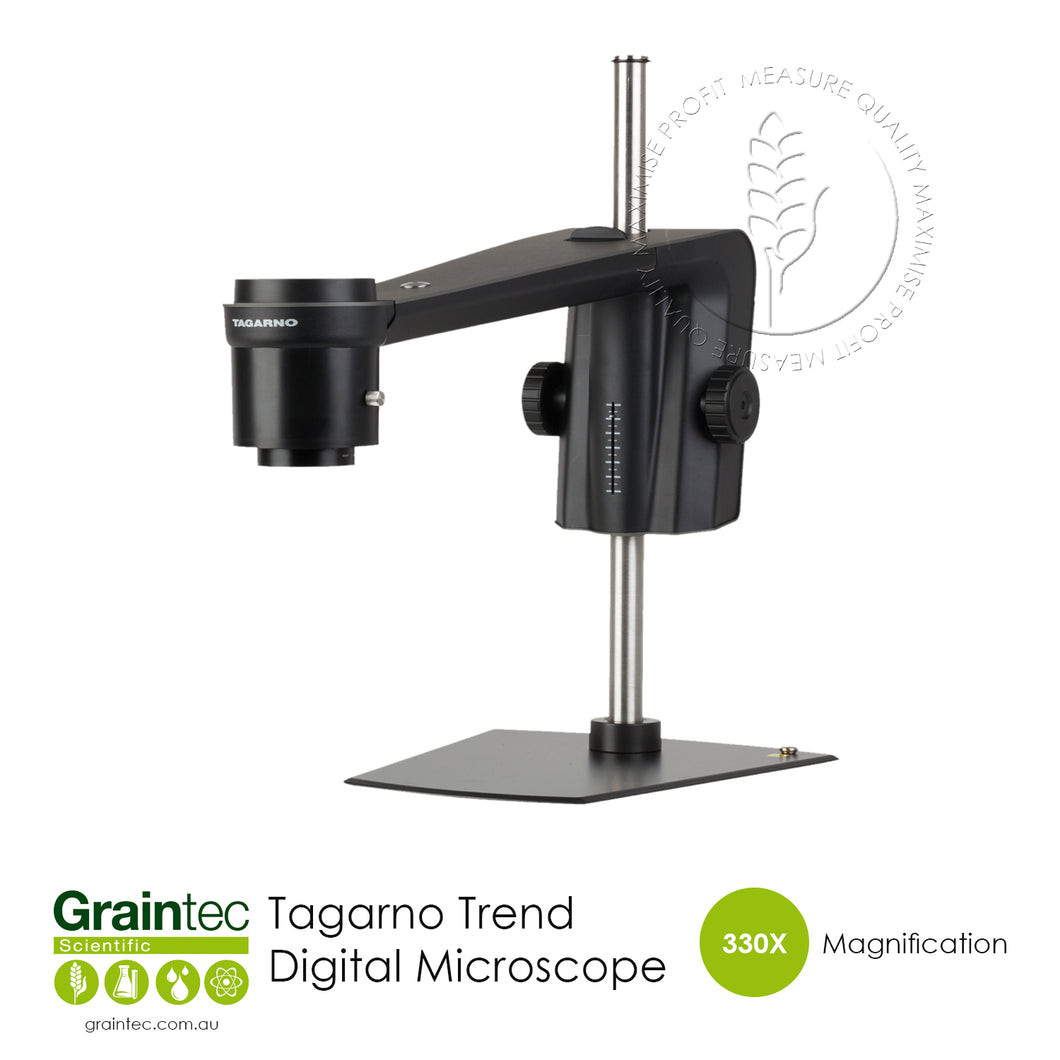

Tagarno FHD Digital Microscope
This digital microscope allows you to continuously update your microscope with new possibilities as they come along. This enables you to customise the digital microscope to always serve as your favourite magnification tool for quality control and analysis by having the ability to add new features and uses to the microscope you have invested in. Being able to add a variety of accessories such as lighting, lenses and tables, enables you to further customize the digital microscope to fit your exact needs.

Optical zoom, ultra-high frame rates and 1080p image quality provides you with crystal clear magnified images to use as indisputable documentation material and rapidly share with colleagues and collaborators. Capture and share images directly to the microscope or computer. Quick and easy perform onscreen measurements on live images to create valuable and credible documentation.

Color boost or not?
Available microscope models differ in the way colours are displayed on screen. Products without ´Colour´ stated in the description displays object colours with a colour boost, resulting in colour enhancement of the actual object colours. This creates higher contrasts between object elements, making it easier to separate one element from another. Microscope models with ´Colour´ stated in the description displays object colours lifelike on screen.

Improve your quality control by continuously adding new technology.
With the new agile digital microscopes from TAGARNO, you quickly and easily gain access to the latest technology without having to invest in new microscopes all the time. You only have to invest in your preferred selection of add on features to update your microscope and you are all set! That way, you always have a digital microscope with the most current and relevant features available and you are thereby always able to alter the system to assist you in your quality work.

Obtain excellent image documentation in management quality.
With 1080p image quality, 60 frames per second and 30x optical zoom, a digital microscope from TAGARNO provides you with an extremely sharp image to view and document the quality of your magnified objects. The camera provides you with an undistorted image without interference or delay - precisely as the magnified object in real life. Built-in autofocus and the ultrasensitive light sensor guarantee ultra-sharp images with enhanced depth of field in any magnification level.

Tagarno Measurement App
TAGARNO Measurement application enables you to perform precise measurements directly from your TAGARNO microscope. You do not need an external computer to do measurements - you can just use our stand-alone digital computer microscopes.

All you need is a mouse connected directly to your microscope and quick installation plus activation of the software and you are good to go! No complicated installation procedures or difficult system requirements just plug in your memory stick, install and start performing measurements directly from your digital microscope.

The TAGARNO Measurement application offers features such as point-to-point, circle, angle and area measurements as well as performing advanced calibrations, lens correction and text and arrow annotations.

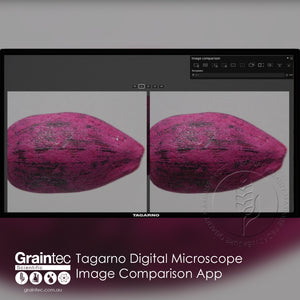

Use a reference to easily compare and control new samples.
By using the Image comparison app for visual inspection of small samples and comparing the magnified sample to a reference sample, the operator is able to quickly and accurately perform quality control of the sample. Read more about the comparison app.

Microscope Documentation Images with Logo and Other Information Graphics
TAGARNO Watermark app is ideal for branding photo documentation created with the microscope. The user is able to apply custom watermarks to the documentation images, plus applying documentation information such as date, time, field of view plus microscope name and serial number imprinted on the image. Learn more about the watermark app.

Use grids or lines as verification of the magnified object.
The Verification lines app enables the operator to perform accurate quality control, by validating the magnified object according to accurate measurements, by placing vertical or horizontal lines and grids on top of the magnified object. Learn more about Verification lines app.

Create high quality image documentation of items with varying height.
Create high quality documentation images easily with the Focus stacking feature. Create one ultra-sharp image from top to bottom of an object by automatically stacking images at different focus heights on top of each other. No blurred or out of focus areas of the image. Learn more about the Focus stacking app.

Save images directly on the digital microscope or a memory stick for easy documentation work.
With the integrated USB 2.0 slot you can also store your images directly on any USB Memory Stick and transfer the images to your computer later, making your documentation work quick and easily sharable around the company supply chain.

Effortlessly save and share verification image and video directly from your computer
Integrated USB 3.0 enables you to show and capture uncompressed video on a computer for further editing or distribution to colleagues and business partners with third party software.

Create validation images with an improved depth of field from optical zoom.
With FULL HD 30x optical zoom the depth of field is significantly improved and the user has an improved overview at minimum zoom. Monitor without using a computer with a standalone digital microscope Turn the vertical, horizontal or vertical/horizontal OSD ruler on/off to get a ruler displayed in metrics or imperial units on top of your live image on screen, according to preferred measuring units. It is also possible to save an image with graphics from the ruler function.

File Type File Size
JPG* 700-2500 KB
BMP 6076 KB
PNG 6086 KB
TIFF 8101 KB

*JPG file size varies depending on the complexity of the image, the simpler the image is the smaller file size, depending on e.g. color nuances, shadows and variations in the image.
